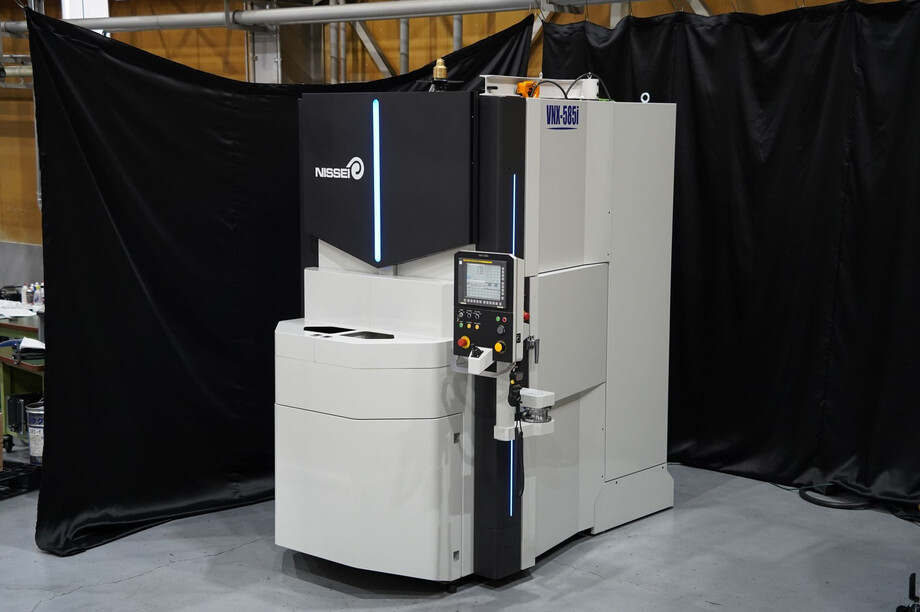

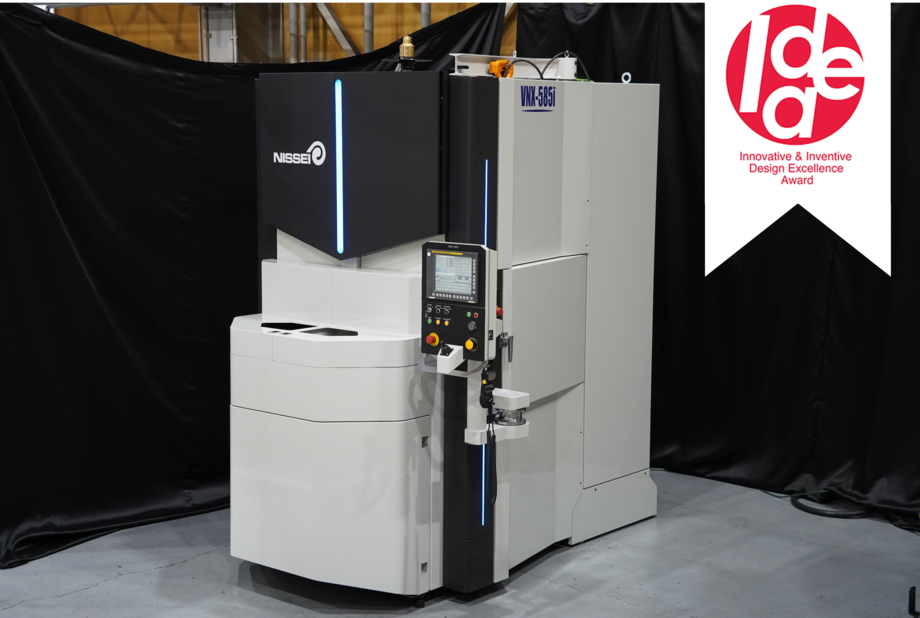

VNX-585i
- The advanced new model of Nissei vertical double disc surface grinder -
achieving both compactness and enhanced rigidity focused on operator friendly design.
This advanced machine will create a new era of Nissei.
Main Specifications
| Machine Dimensions | 2,500(D)×1920(W)×2710(H)mm |
|---|---|
| Machine Weight | Approx. 8,000kg |
| GW Drive Motor | AC spindle motor ー 22kW×2 |
| Grinding Method | Rotary carrier / Carrier oscillation / Workdrive |
| Remarks | Following optional devices are available: ・Loading / unloading device ・Post-process gauging device ・Jib crane for GW change ・Automatic adjustment of upper guides ・Twin rotary dresser ・Automatic GW tilt adjustment system |

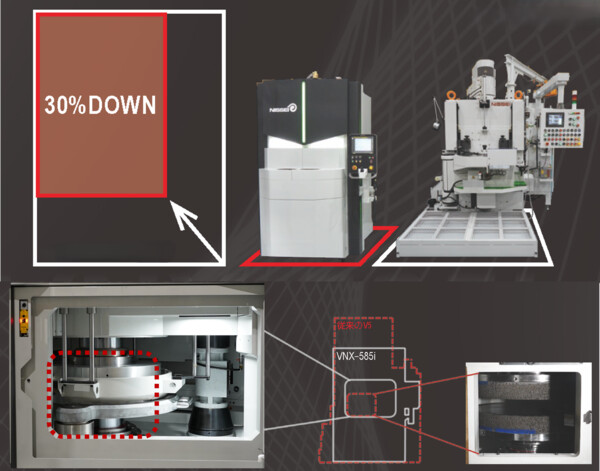

・Succeeding Nissei's original concept of high-rigid bed construction, it achieves a 30% increase in rigidity. Furthermore, 30% reduction in footprint allows more flexibilities in floor layout.

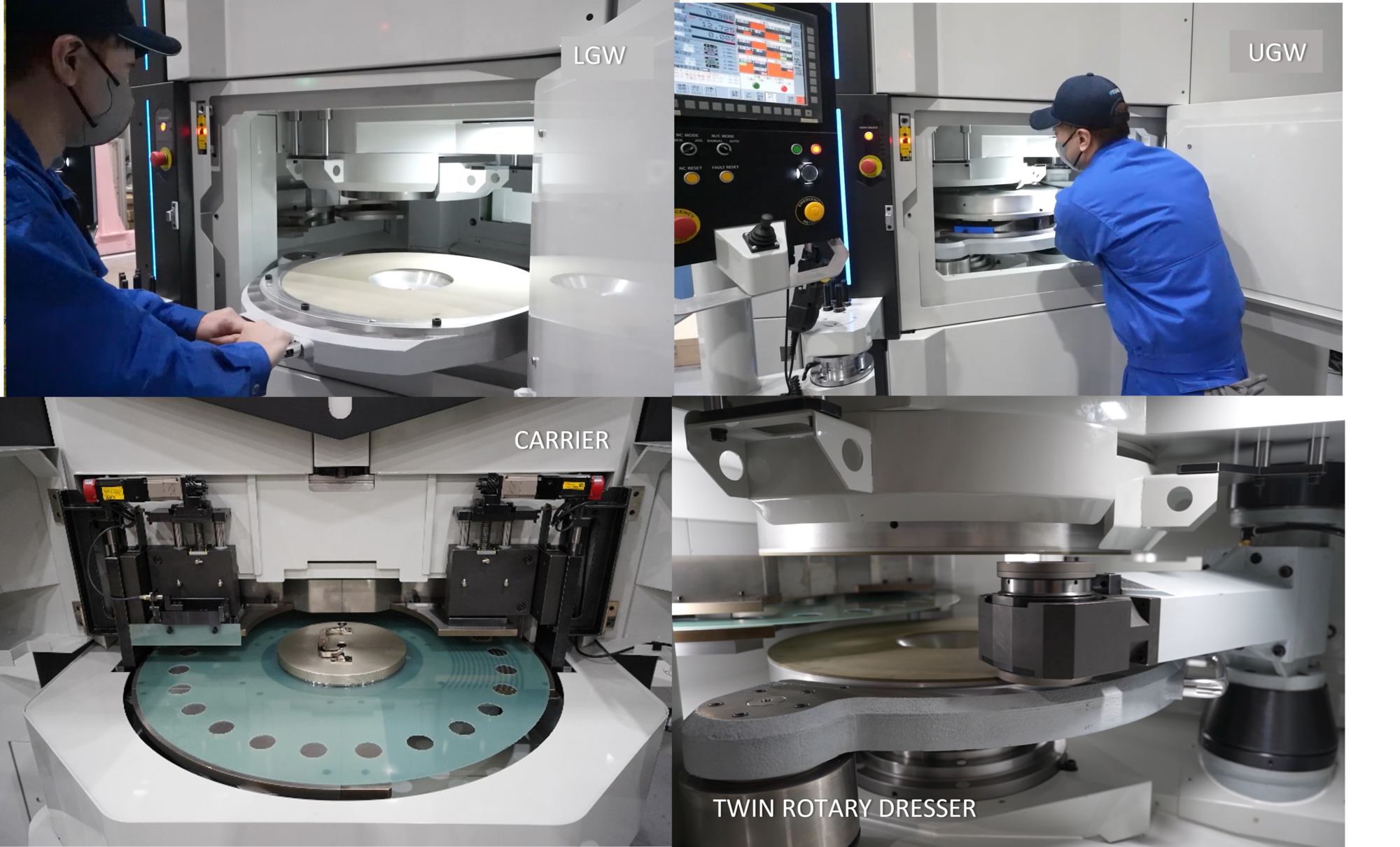

・The side maintenance door is four times larger than previous models and significantly improves easy access for operation such as GW change and setting UGW tilt. The supporting arm for the GW change is permanently installed and does not require removal from the grinding chamber.
The installation of large and heavy GW change jig is no longer necessary by this new design.
・The side maintenance door is four times larger than previous models and significantly improves easy access for operation such as GW change and setting UGW tilt. The supporting arm for the GW change is permanently installed and does not require removal from the grinding chamber.
The installation of large and heavy GW change jig is no longer necessary by this new design.
・The mechanism of UGW tilting can be reached from the floor, and there is no need to climb onto the machine top. Automatic UGW tilt adjustment is also available on operation panel as an option
・Twin rotary dresser, controlled by AC servomotor, has reduced dressing time to less than half of before(optional), which contributes to improvement in relative machine efficiency.
・Twin rotary dresser, controlled by AC servomotor, has reduced dressing time to less than half of before(optional), which contributes to improvement in relative machine efficiency.
